Formulating an active dose of 5 grams of Creatine Monohydrate alongside bioavailable mineral electrolytes sounds simple on paper. However, translating this powder blend into a commercial single-serve stick pack often leads to unexpected packaging dimensional traps.
If the stick pack is engineered too narrow (e.g., 20 mm), the powder column rises too high, causing powder dust contamination in the top thermal seal area. If made too wide (e.g., 40 mm), it ceases to look like a premium slimline stick pack and balloons carton dimensions. If made too long (e.g., >160 mm), 30 sticks cannot pack vertically into standard subscription outer cartons, drastically inflating Amazon FBA fulfillment costs.
Why 5 grams of active creatine does not mean 5 grams of powder
To deliver 5 g of pure active creatine plus 1,000 mg of sodium, 200 mg of potassium, 100 mg of magnesium, natural citric acid, and zero-calorie Reb-M sweetener, the total gross fill weight reaches 7.5 g to 9.0 g. Depending on whether you choose 200-mesh micronized creatine (fluffy, aerated bulk density ~0.55 g/mL) or 80-mesh standard creatine (tapped density ~0.75 g/mL), the required internal pouch volume varies by over 35%.
Explore our custom stick pack dimensional tooling options Creatine Electrolyte Stick Pack OEM Services.
The stick pack width vs length engineering trade-off
On high-speed multi-lane vertical form-fill-seal (VFFS) machinery, stick pack width is fixed by the stainless steel forming collar (e.g., 23 mm, 28 mm, 32 mm, 38 mm). Increasing length is flexible on the fly via servo pull rollers, but excessive length (>150 mm) creates a flimsy "floppy" stick that bends during automated multi-head robotic cartoning.
Review RainwoodBio's stick pack format optimization specs contact us for OEM consultation.

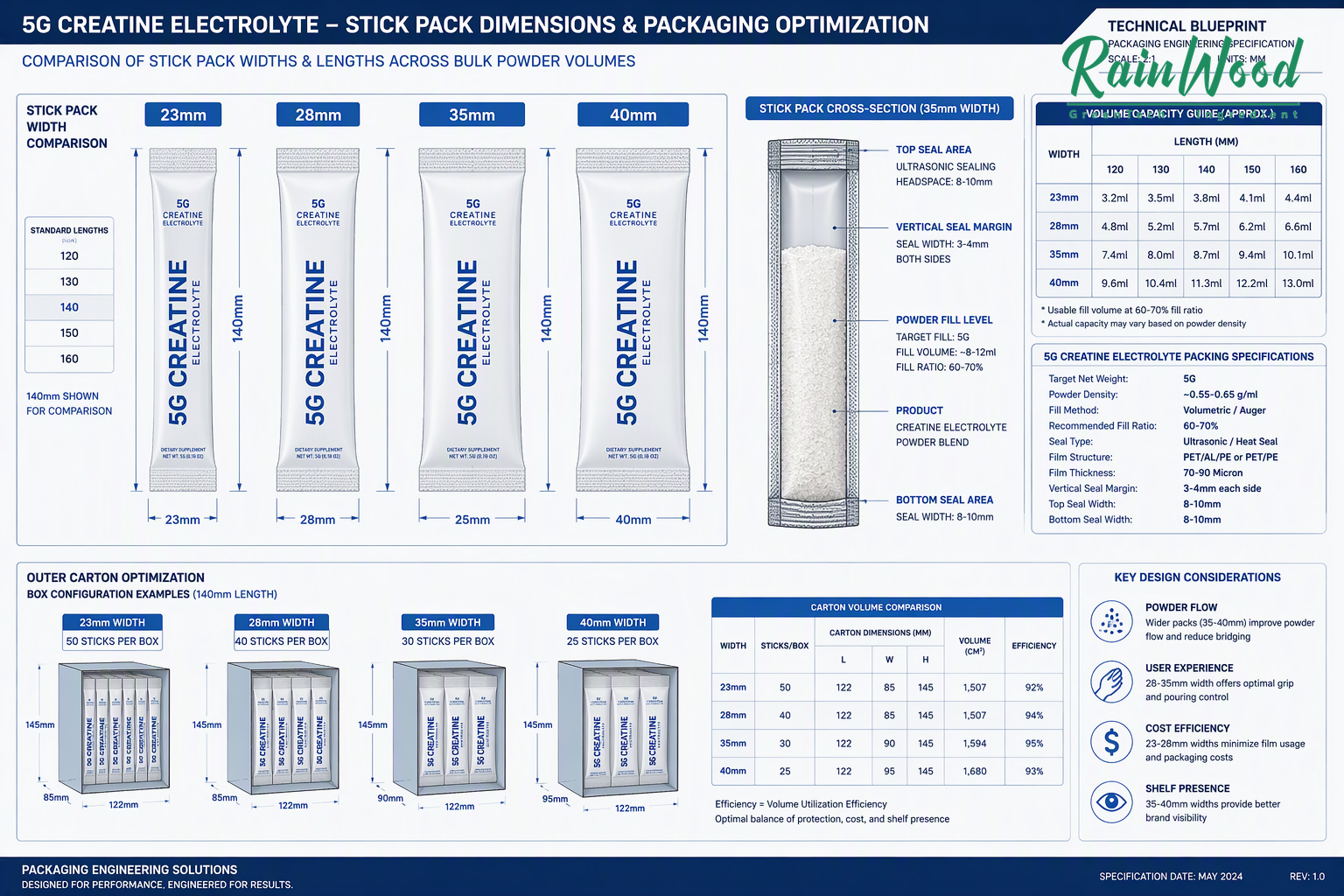

Figure 1: Dimensional Geometry Blueprint — Comparing Width (23mm to 38mm), Height (120mm to 160mm), Powder Fill Line, and Seal Headspace.
Stick pack format dimensional comparison table
Headspace management and leak-free ultrasonic sealing
Maintaining at least 30 mm to 35 mm of clean headspace above the powder fill line ensures that powder particles do not bounce into the top horizontal seal jaws during 80-to-120 stick/minute multi-lane VFFS cycling. RainwoodBio combines auger de-aeration, nitrogen flushing, and ultrasonic sealing jaws to ensure zero powder entrapment.
Learn more about cGMP packaging validation protocols RainwoodBio format development review.

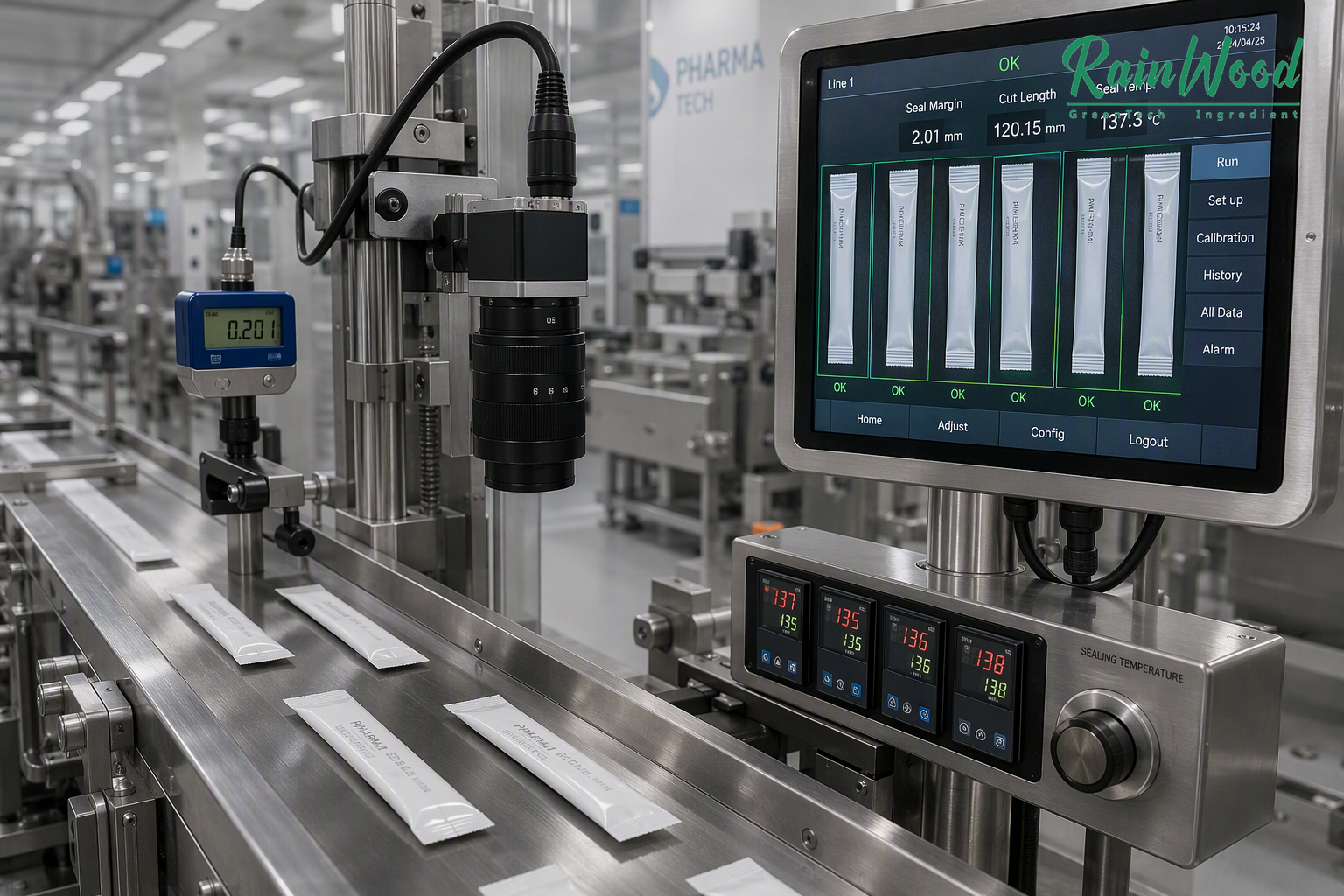

Figure 2: In-Line Optical Quality Control — High-Speed Seal Width Measurement and Laser Notch Positioning on VFFS Line.
The stick pack engineering approval checklist
- Tapped and aerated bulk density (g/mL) measured across 3 pilot blender batches;
- Stick width and length validated for >30 mm sealing headspace at 100 BPM line speeds;
- 30-count carton dimensions fit within Amazon Small Standard Package Tier (≤ 15" x 12" x 0.75" or ≤ 1.5 lb);
- Barrier film structure (PET/ALU/PE or EVOH) verified for zero delamination at tear-notch.
Send your formula and target package dimensions for a packaging engineering review contact RainwoodBio for formula and packaging review.
Frequently asked questions
Micronized 200-mesh powder traps more air and has a lower bulk density (~0.55 g/mL) than standard 80-mesh powder (~0.75 g/mL), requiring ~30% more volume for the same 5g dose.
Yes. RainwoodBio uses micro-perforated laser scoring on the outer PET layer without penetrating the middle aluminum barrier foil, preserving 100% moisture protection.
A standard 28mm x 130mm stick allows a compact 2x15 vertical arrangement inside a 75mm x 65mm x 135mm outer tuck box, perfect for retail shelves and mailer boxes.
References
- Packaging Machinery Manufacturers Institute (PMMI) VFFS Guidelines: https://www.pmmi.org/...
- ASTM F88 Standard Test Method for Seal Strength of Flexible Barrier Materials: https://www.astm.org/...
- RainwoodBio Custom Packaging Capabilities: https://www.rainwoodbio.com/oem
