Every brand founder remembers the excitement of approving the golden benchtop sample: a hand-blended, lab-filled stick pack that dissolved instantly, tasted crisp, and poured smoothly. Yet when the commercial purchase order of 50,000 retail boxes arrives, customers report clumping, sour flavor spikes, or variable creatine potency.
What went wrong? The physical reality of moving from a 5 kg laboratory benchtop blender to a 1,000 kg industrial V-blender introduces major chemical engineering dynamics: increased friction shear, electrostatic charge generation, particle attrition, and prolonged powder residence time in packaging hoppers.
The mechanics of commercial scale-up drift
In large industrial blenders, fine flavor particles and heavy mineral salts (like potassium chloride and magnesium malate) move at different velocities. Over-blending can generate static electricity that causes fine powders to coat machine walls, while under-blending creates hot spots where concentrated acid pockets ruin taste uniformity.
Explore our commercial scale-up blending and validation protocols Creatine Electrolyte Stick Pack OEM Services.
Why pilot line validation is mandatory before mass packaging
RainwoodBio executes a strict 3-tier scale-up gate: benchtop R&D (5 kg), pilot validation run (50 kg), and commercial batch release (500–2,000 kg). At each stage, powder flowability (Carr Index, Hausner Ratio) and blend homogeneity are verified across multiple drum zones before initiating high-speed stick pack cartoning.
Read our pilot batch qualification guide contact us for OEM consultation.

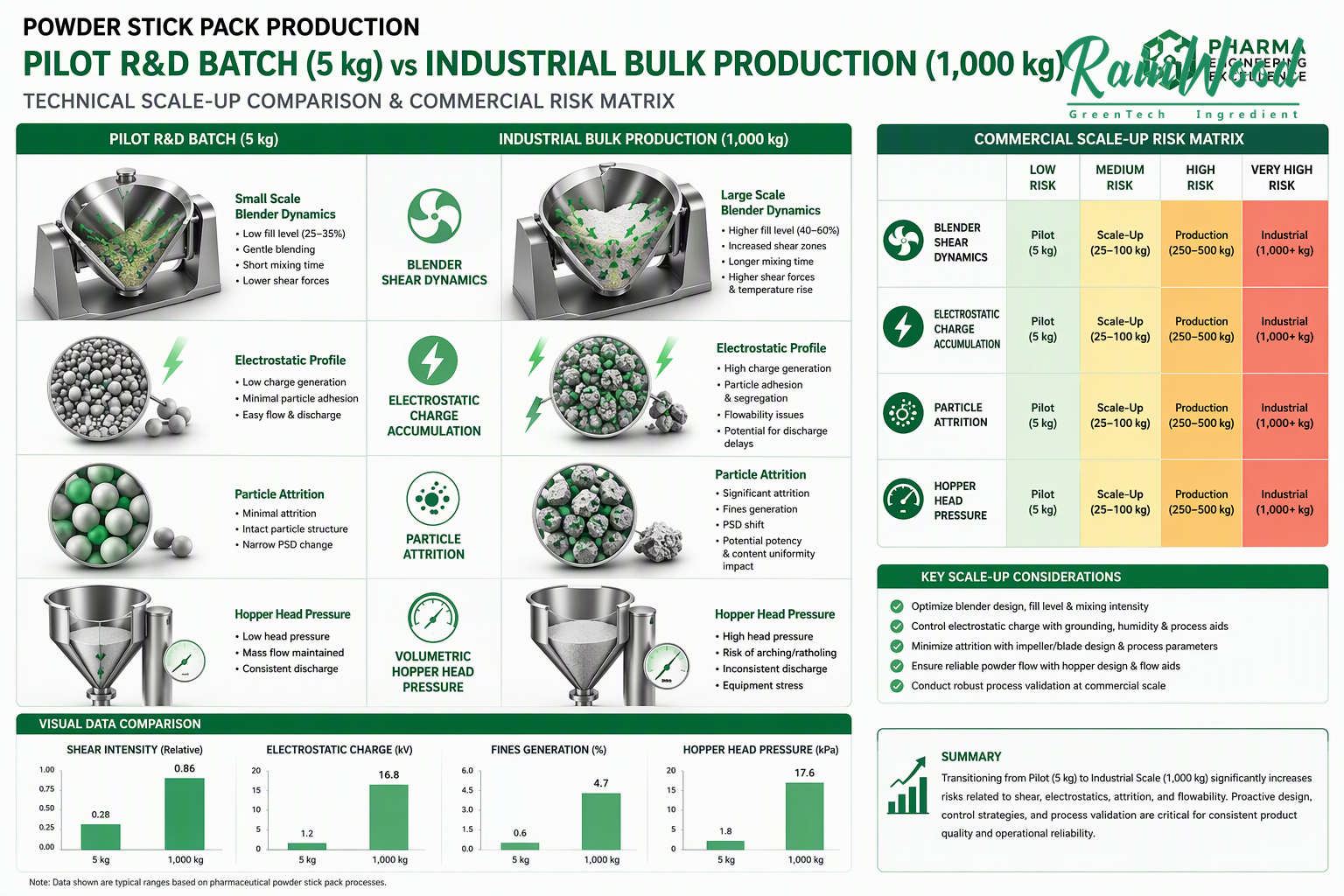

Figure 1: Scale-Up Engineering Parameters — Pilot Batch (5kg) vs Commercial Industrial Run (1,000kg) Dynamics.
Pilot-to-commercial scale-up comparison table
How RainwoodBio validates commercial scale-up
RainwoodBio utilizes computerized V-blenders equipped with precision liquid-injection spray bars (for uniform natural flavor dispersion) and low-humidity packaging cleanrooms (<35% RH). Our engineering team performs full-drum thief sampling to ensure that the 50,000th stick pack matches the 1st stick pack in taste, active potency, and appearance.
Request a commercial scale-up pilot trial review RainwoodBio format development review.

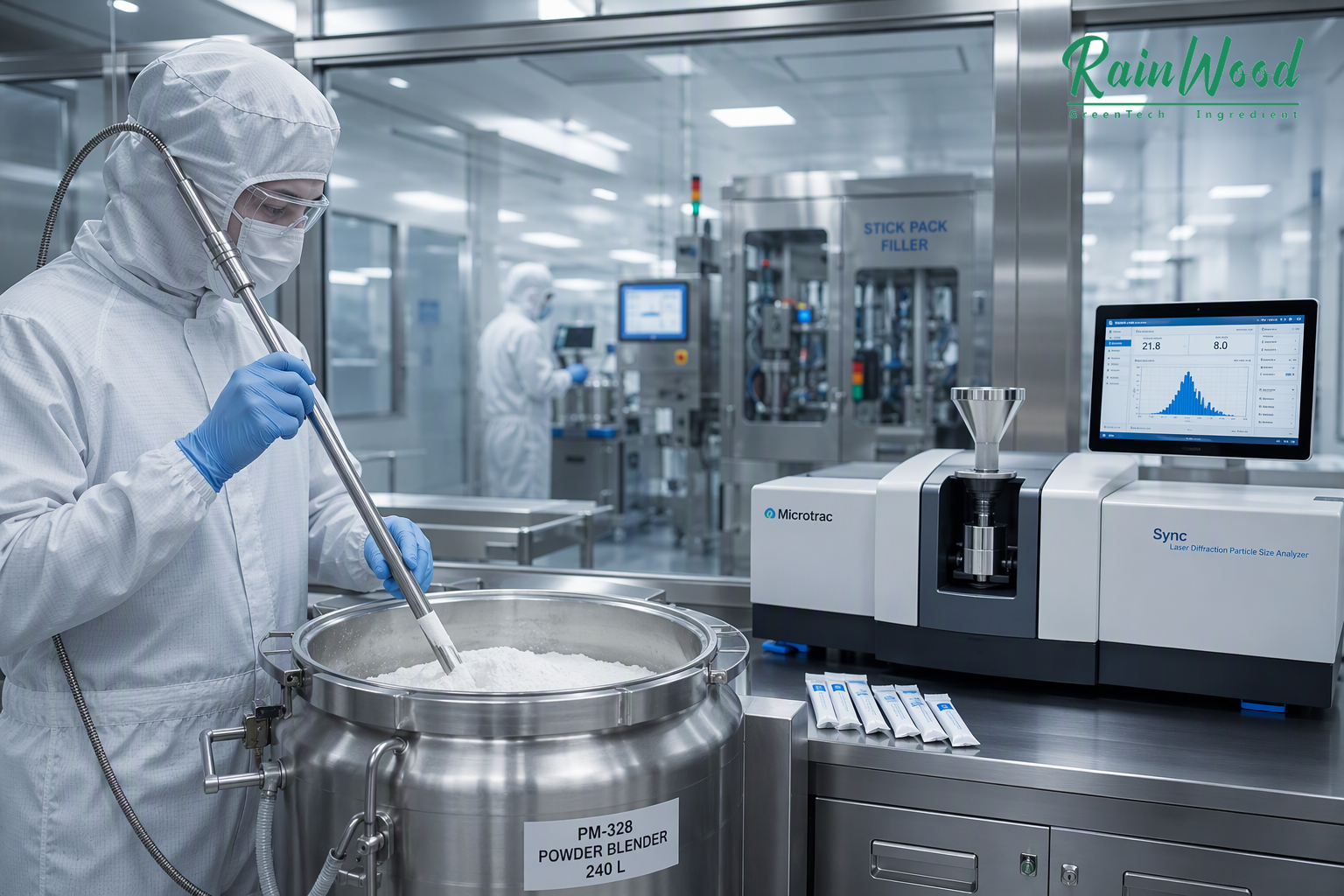

Figure 2: Industrial Scale-Up Quality Gate — Powder Thief Sampling, Particle Size Analysis, and V-Blender Homogeneity Release.
The scale-up approval gate
- Pilot batch demonstrates identical dissolution time to laboratory prototype;
- Powder flow rate in filling hoppers is validated across a 4-hour continuous run;
- Multi-point drum thief sampling passes blend uniformity RSD < 3.0%;
- Finished batch sensory panel confirms zero flavor drift or acid hot spots.
Submit your formulation for a scale-up feasibility and pilot trial contact RainwoodBio for formula and packaging review.
Frequently asked questions
In large commercial batches, uneven blending or particle segregation can cause heavy citric acid crystals to concentrate in certain packaging lanes.
A specialized stainless steel probe that collects powder samples from the top, middle, and bottom of an industrial blender to verify true batch homogeneity.
We offer pilot trial runs starting at 50 kg to validate high-speed line machinability before full commercial production.
