When reviewing early prototype samples from a contract manufacturer, the founder opens a single stick pack, tests its weight on a bench scale, and checks the flavor. It measures exactly 7.50 grams and tastes perfect. The brand signs off on commercial production, assuming all 30,000 units in the order will perform identically.
In industrial high-speed packaging (operating at 300 to 600 sticks per minute across 6 to 10 parallel lanes), a single passing stick proves nothing about statistical uniformity. Powder head pressure in the hopper shifts, humidity fluctuates, and multi-lane augers can drift, resulting in fill weight variations between sticks inside the very same 30-count retail box.
The multi-lane dosing challenge
Multi-lane vertical form fill seal (VFFS) machines dose multiple packets simultaneously. If lane 2 experiences slight powder bridging while lane 5 runs with faster flow, individual sticks in the same carton can fluctuate by ±10% in active creatine and electrolyte content unless controlled by dynamic checkweighers.
Explore our statistical process control (SPC) and multi-lane filling standards Creatine Electrolyte Stick Pack OEM Services.
Why USP <2091> Weight Variation and USP <905> Uniformity matter
Under United States Pharmacopeia standards, dietary supplement dosage units must comply with strict acceptance criteria for weight variation and active ingredient uniformity. A customer who opens stick 1 on Monday should receive the exact same 5.0 g creatine dose as stick 30 on Sunday.
Read our batch release testing and uniformity protocols contact us for OEM consultation.

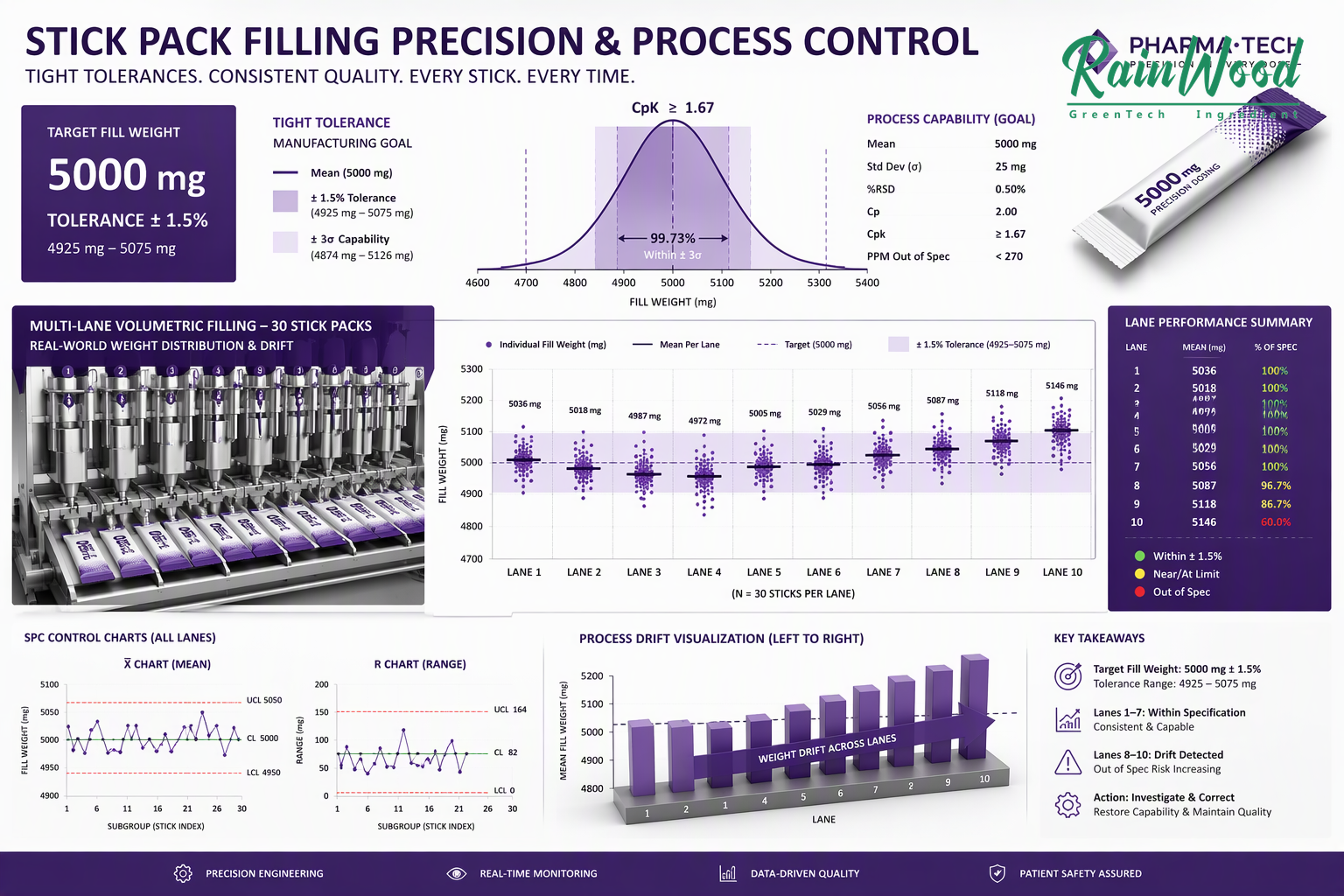

Figure 1: Statistical Process Control — Target Dose Tolerance (±1.5%) vs Uncontrolled Multi-Lane Volumetric Drift.
Dose uniformity risk matrix
How RainwoodBio guarantees 30 uniform sticks per carton
RainwoodBio combines multi-point statistical sampling during the production run with 100% automated gross carton checkweighing. Every single 30-stick box is weighed at the end of the line: if a box is short by even a single stick, or if average stick fill weight drifts outside ±2%, the carton is automatically rejected.
Request a batch uniformity validation and SPC report sample RainwoodBio format development review.

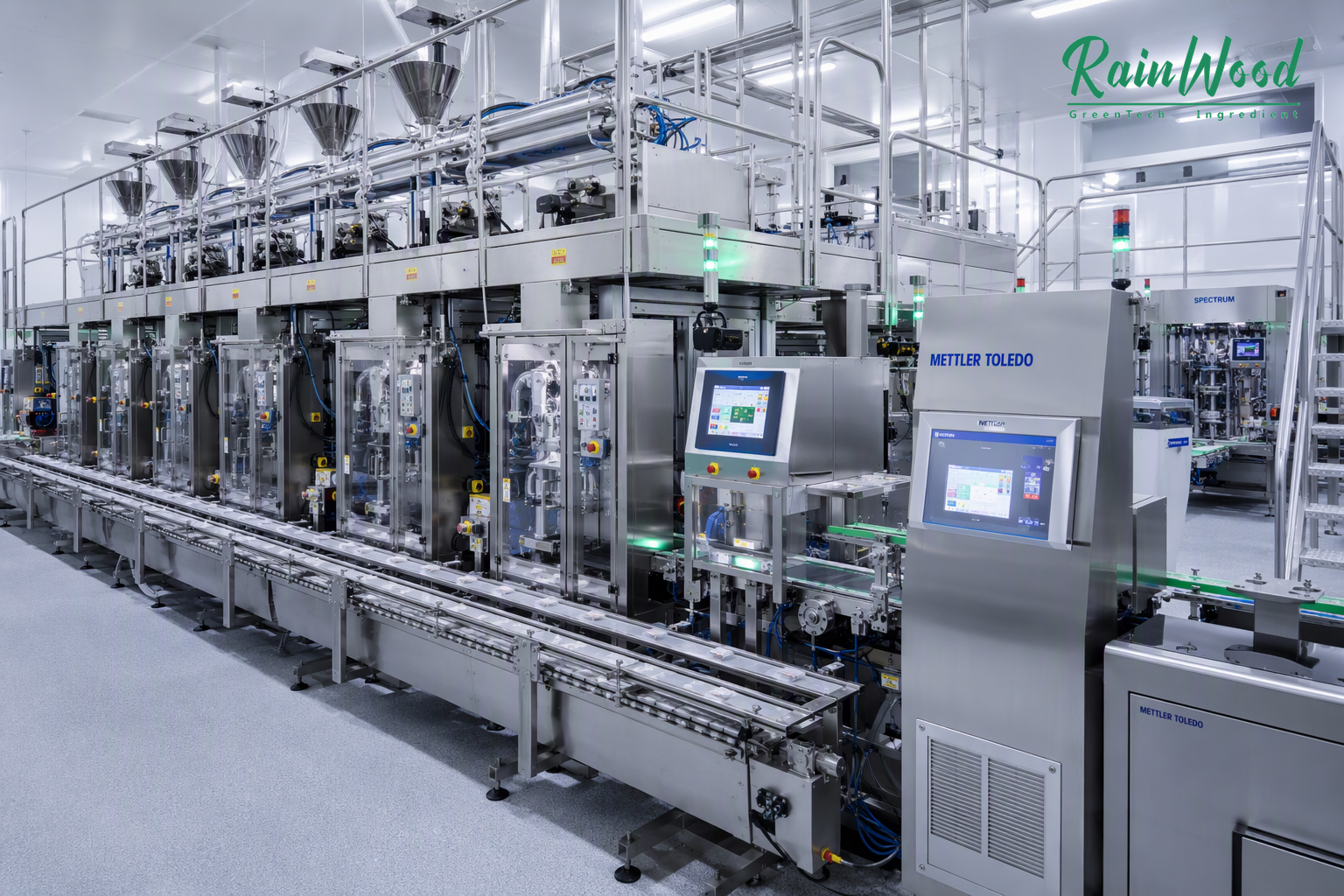

Figure 2: Automated Quality Control — High-Speed Multi-Lane VFFS Packaging & In-Line Checkweigher Rejection Gate.
The dose uniformity approval gate
- Pilot run proves blend homogeneity across at least 10 stratified sampling points;
- Multi-lane filling machines maintain relative standard deviation (RSD) < 3.0%;
- Every finished carton passes automated dynamic checkweigher verification;
- Finished batch COA confirms active creatine potency in every sampled unit.
Send your target formulation for a dose uniformity and line feasibility review contact RainwoodBio for formula and packaging review.
Frequently asked questions
RainwoodBio performs particle size matching and uses gentle low-shear tumble ribbon blenders to ensure cohesive powder adhesion without segregation.
Under cGMP standards, fill weight should remain within ±3% of target label claim across all packaging lanes.
Yes. We use automated optical piece counters coupled with terminal box checkweighers to eliminate missing-unit errors.
References
- USP <2091> Weight Variation of Dietary Supplements: https://www.uspnf.com
- FDA cGMP 21 CFR 111 In-Process Material Control: https://www.accessdata.fda.gov
- RainwoodBio Precision Contract Packaging Capabilities: https://www.rainwoodbio.com/oem
